MICOR infrared band radiators: Optimize your production sustainably!

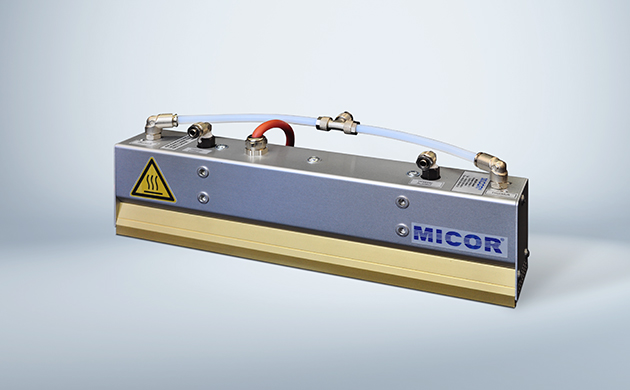

Infrared band radiator

With our infrared band radiators, you can sustainably shorten drying and heating processes. The specially developed reflector geometry significantly reduces energy consumption and leads to increased efficiency in production processes.

Our infrared band radiators transfer energy to the product contactlessly as pure infrared radiation in a temperature range of 25-1,000°C. The intensity of the infrared radiation can be flexibly adjusted by adjusting the applied voltage and the distance to the product.

Thanks to extremely short response times, the full power of our infrared band radiators is available in less than a second. Our elliptical band radiators focus 98% of the infrared radiation onto a 4mm focal length, making them highly efficient.

MICOR represents 45 years of market and technology experience. Our products are continuously refined and utilize our unique MICOR *NIR technology, which features instant on/off capability, eliminating the need for preheating or cooling times. Our products are ATEX certified and comply with EU regulations.

Technology and Benefits

Infrared band radiators: All data at a glance

Infrared band radiators from MICOR

Our band radiators are designed to meet your needs, can be individually adjusted without loss of time, have a space-saving design, and are tailored to your production requirements and conditions. Each infrared band radiator can be easily integrated into your existing systems.

Options & configurations
  • Integration into existing production systems possible
  • Various power levels: Customized according to customer requirements
  • Cooling Options
    • Internal fans
    • Compressed air
    • Water cooling
    • External fan
  • Custom Control Units: Integration into existing machine controls
  • Optional quartz glass: Available as a protective cover
  • Adjustable focal length
  • Custom mounting options
  • Mobile solutions: For flexible use
Technical data
Technical Drawing MICOR *NIR Band Radiator
Reflector type L (mm)
 BE (mm)
 Focal band length (mm)
 Power (W)
 Voltage (V)
LE/LP145S 148 50 ca. 62 500 220-250
LE/LP145 148 50 ca. 62 1000 220-250
LE/LP230 233 50 ca. 142 500 220-250
LE/LP230 233 50 ca. 142 1000 220-250
LE/LP230 233 50 ca. 142 1500 220-250
LE/LP230 233 50 ca. 142 2000 220-250
LE/LP360 363 180 ca. 272 1000 220-250
LE/LP360 363 180 ca. 272 2000 220-250
LE/LP360 363 180 ca. 272 3000 220-250
LE/LP360 363 180 ca. 272 4000 220-250
LE/LP500 503 320 ca. 410 2000 380-420
LE/LP790 793 620 ca. 700 3000 380-420
LE/LP790 793 620 ca. 700 5000 380-420



Additional sizes and power levels are available upon request.

Application areas

Furniture manufacturing:

  • Surface heating of decorative thermoplastic films (PVC, ABS, etc.), urea or dispersion adhesives on pre-impregnated materials (HPL, CPL), as well as MDF and particleboard
  • Edge heating of e.g., wood and furniture industry products

Cable, rubber and plastic industries:

  • Heating of welds and thermoplastic films
  • Drying of profile coatings
  • (Pre-)vulcanization of rubber profiles

Automotive industry:

  • Heating of rubber profiles during lamination, coating, painting, or pre-vulcanization

Aerospace industry:

  • Partial surface heating of build-up welds

Solar wave manufacturing:

  • Brazing of wave plates

Textile industry:

  • Erwärmung und Trocknung von Draht, Fäden, Bändern und Bahnen

Printing application:

  • Drying of print marks such as bar codes and serial numbers

Depending on the application and specific use case, our infrared band radiators are available in various power levels, sizes, and voltages. Please contact us for a personal consultation.
